The USS BOSTON SSN-703 Sail Project

Bruce McCausland has been on hand with his camera to record these "Little Dig" activities. The pix are shown here in chronological order. The construction began on June 18, 2003.

What you're looking at is the construction of the concrete pad that will support the sail. The sail is about 25' long, 16' high, and 6' wide, and weighs about 100,000 pounds. The New York-licensed engineering firm that we hired determined that the pad had to be a little larger than the footprint of the sail and 4' thick and reinforced with steel bars. Also, the design incorporates mounting bolts to hold the sail firmly. With these mounting bolts in place, we are fairly confident that the sail will not be stolen. (There's a joke there; the mounting bolts were mandated by the engineer.)

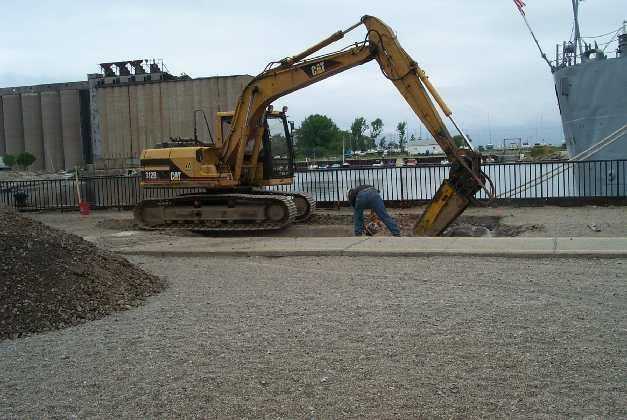

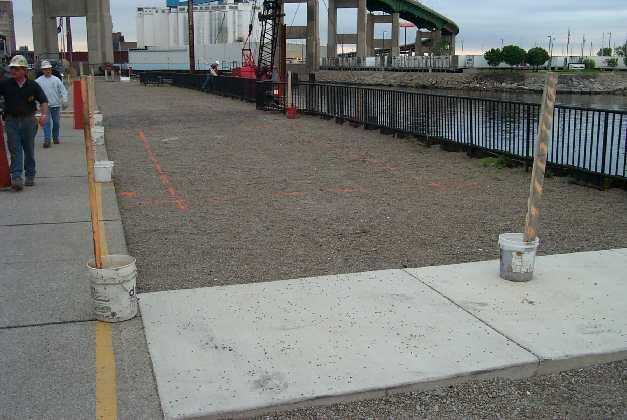

Dig progress

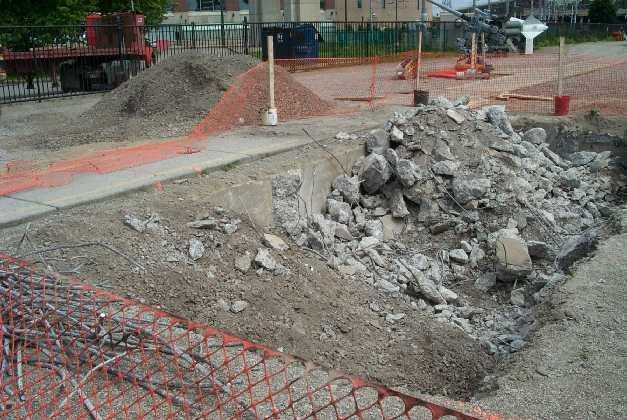

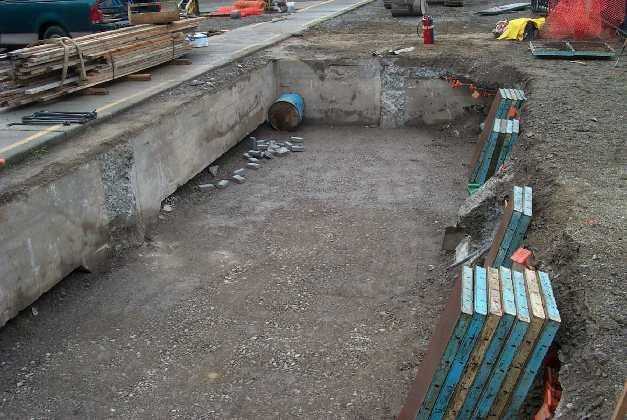

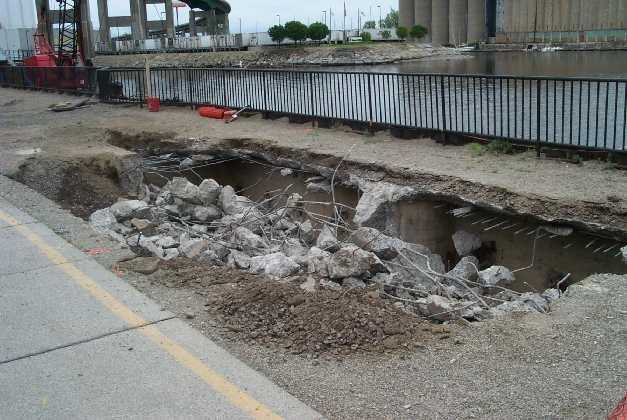

End of 1st day work showing debris

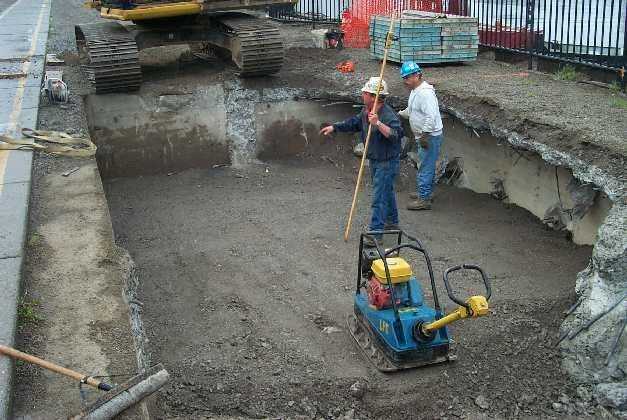

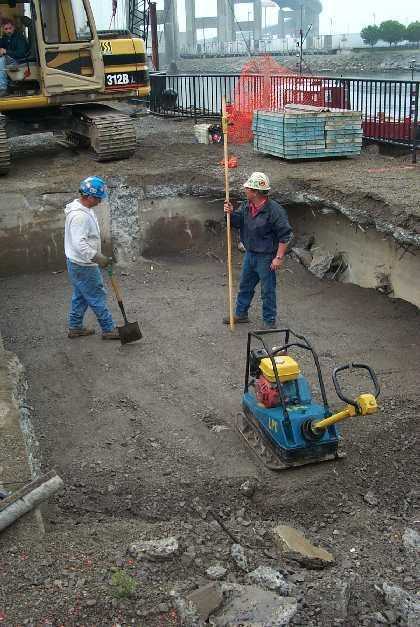

Thursday morning 8am tamping
Thursday morning 8am tamping1
10am work progress

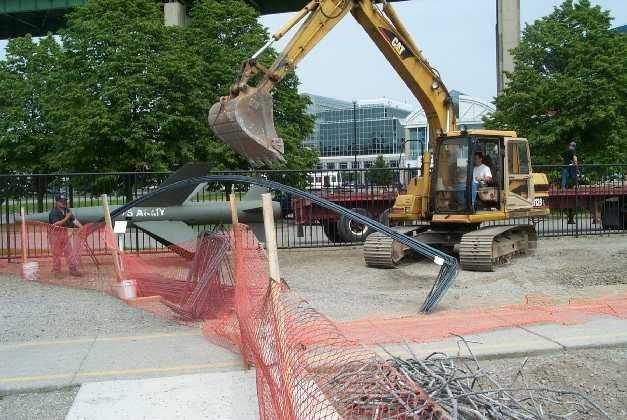

Unloading the rebar

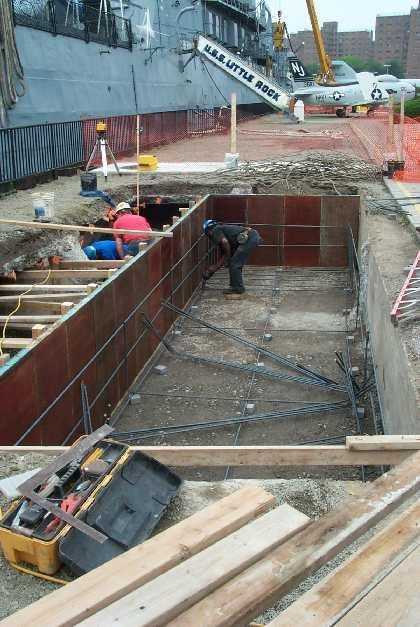

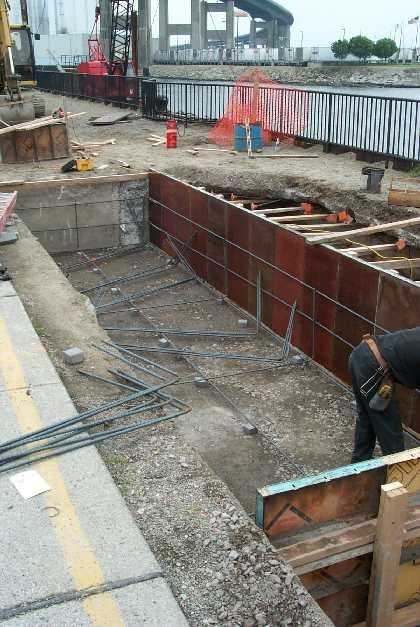

Rebar installation1
Rebar installation2

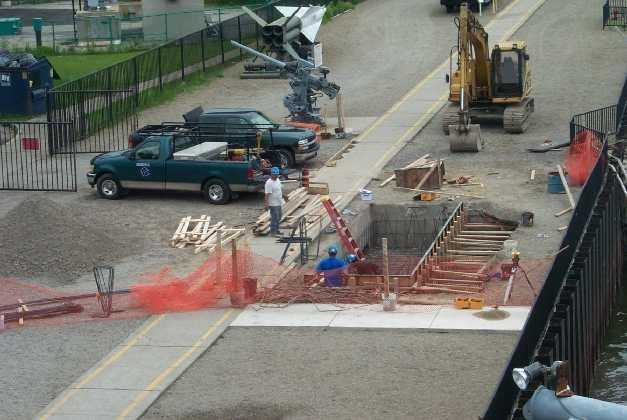

Display site from little rock

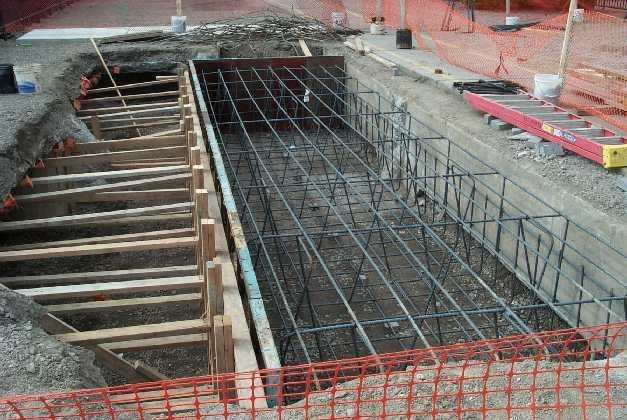

End of work thursday

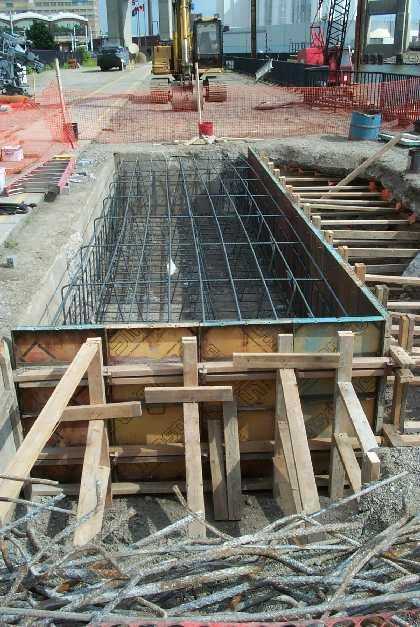

End of work thursday1

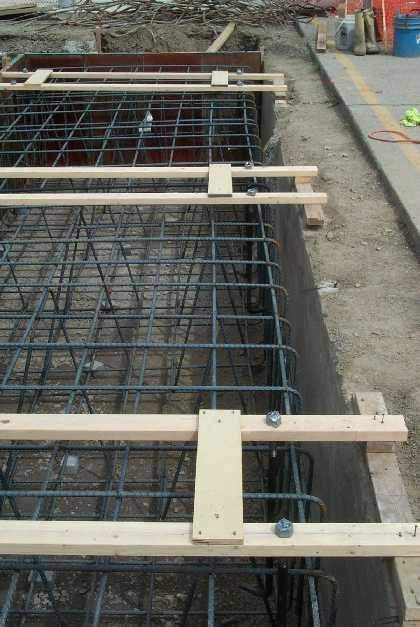

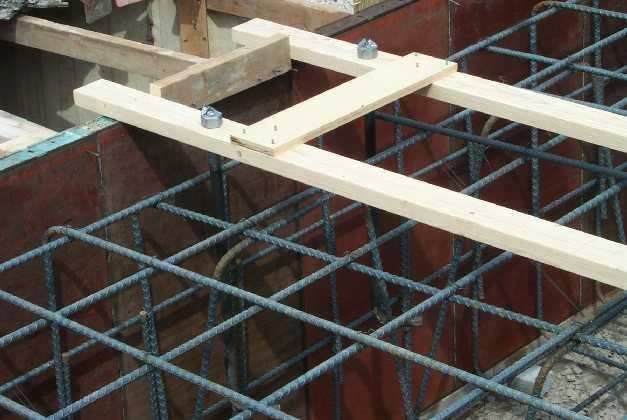

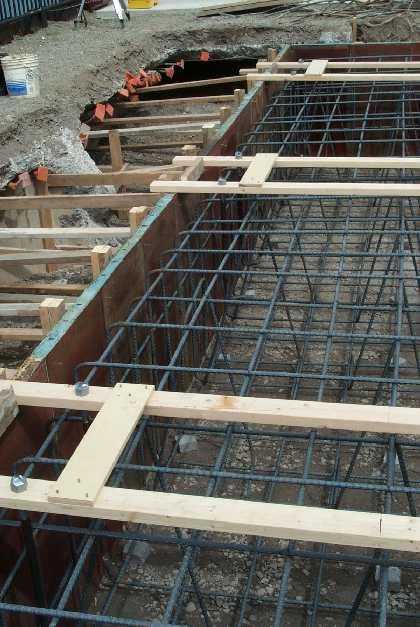

Support bolt detail1
Support bolt detail2
Support bolt detail3

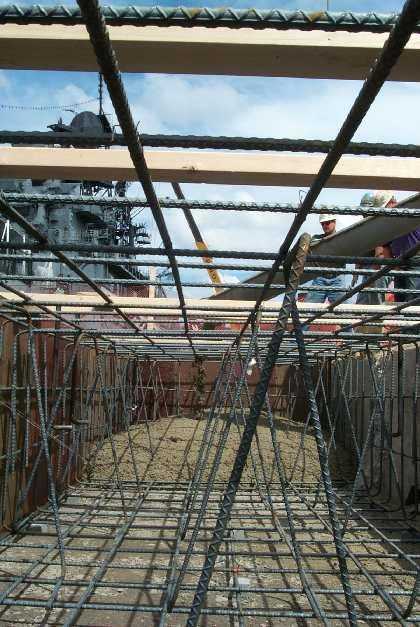

A last look from inside

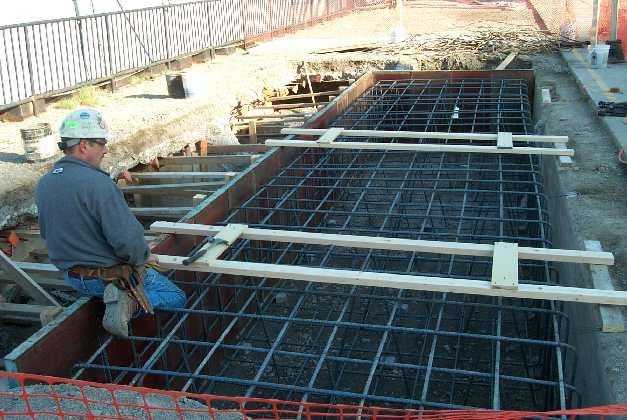

Friday morning prep for pouring cement

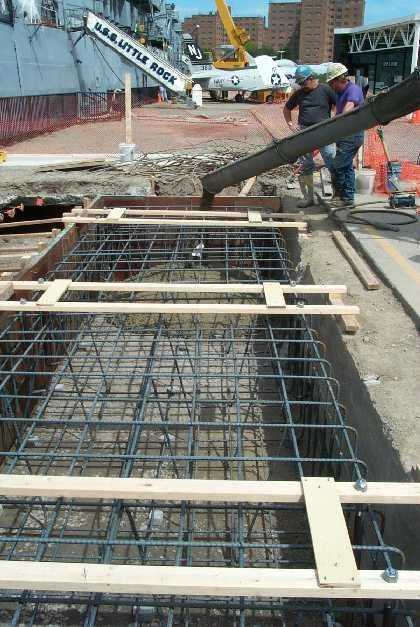

Ready to pour703

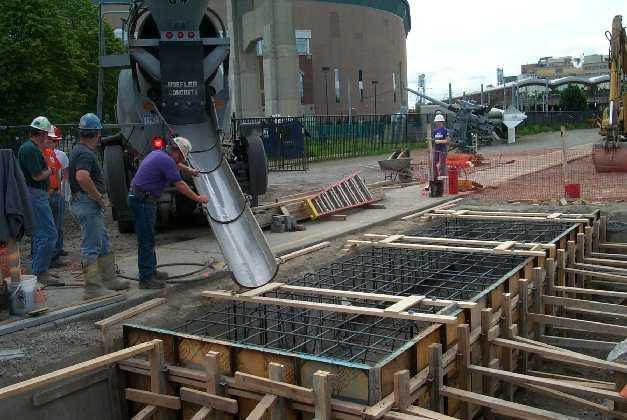

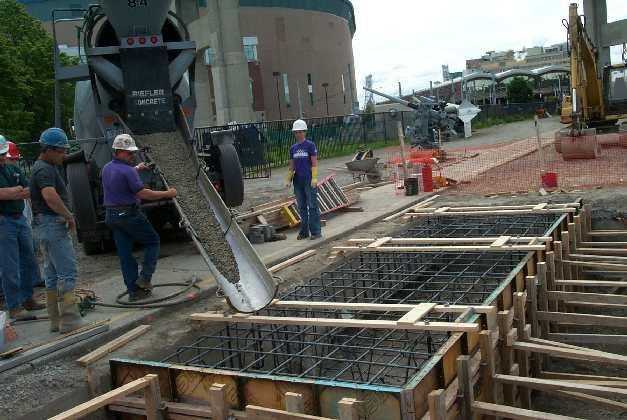

1st pouring
Filling foundation

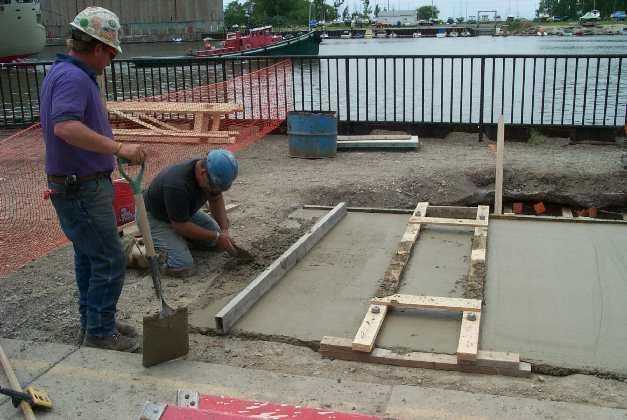

Friday finishing touches1

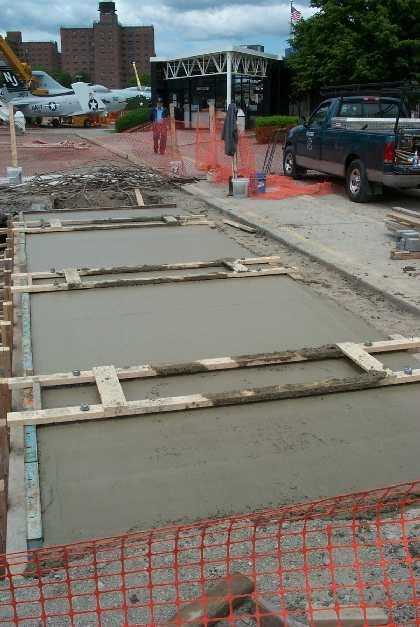

Friday finishing touches2

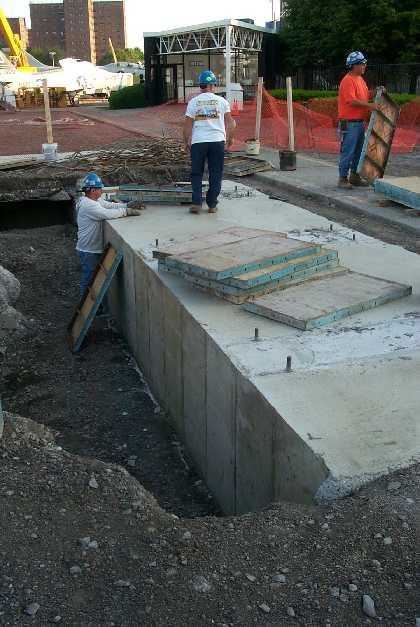

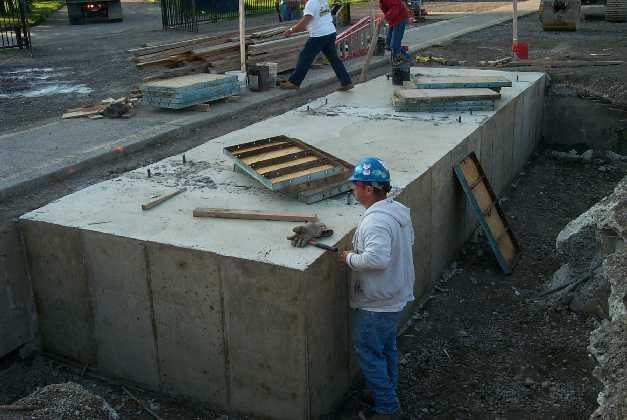

Monday Morning 7AM removal of forms
Monday Morning 7AM removal of forms2
